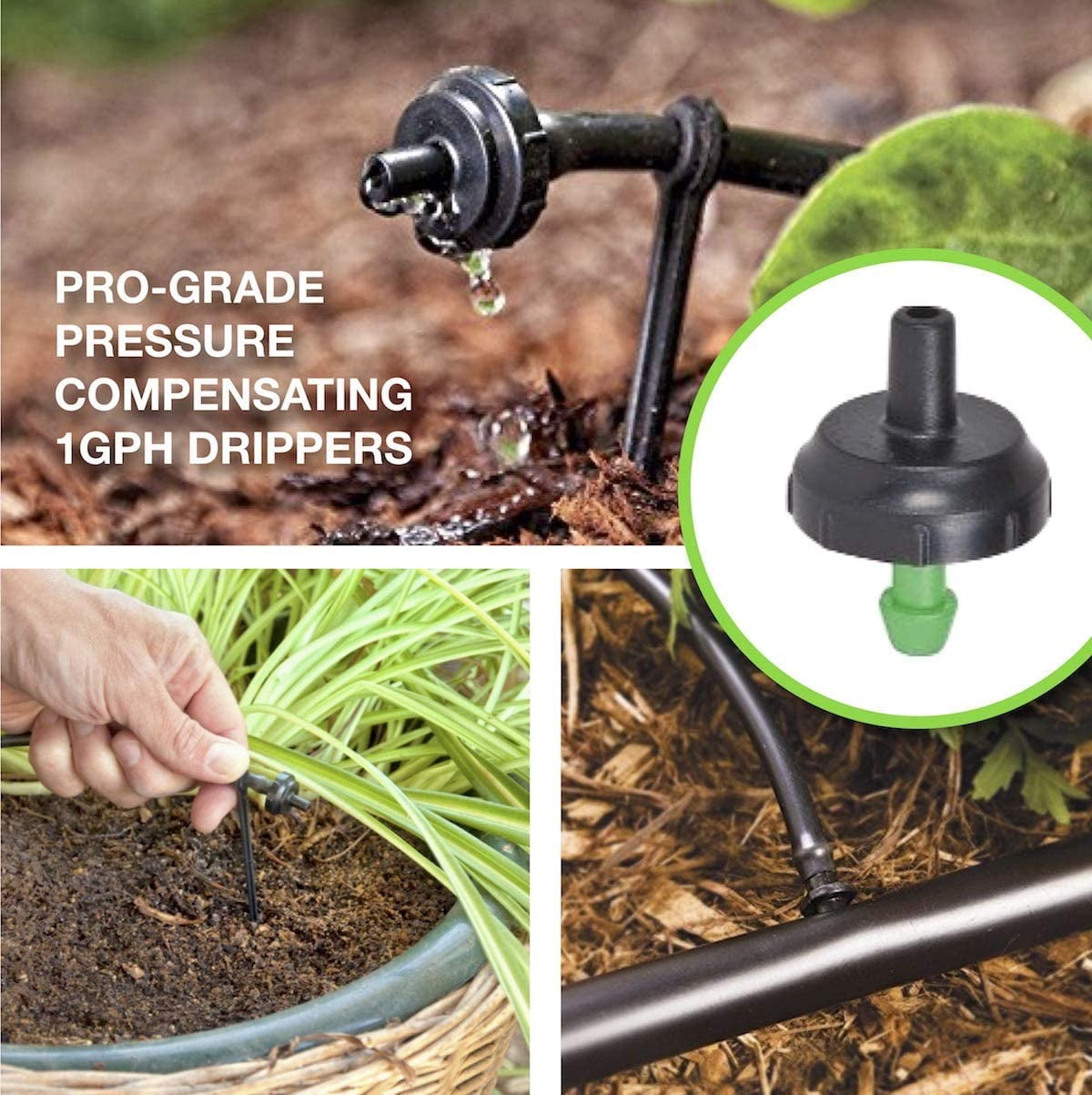

Drip Irrigation 1 GPH PC Button Drip Emitter - Professional Quality Pressure Compensating Barb Dripper (100)

PC Drip Emitters Features The labyrinth water passage with floating silicon diaphragm design provides a self-cleaning mechanism at the water outlet Barbed inlet for installation into drip tubing or 1/4" distribution tubing Male nipple outlet for a placement of multi outlet adapter or bug caps Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions Available in three color-coded flow rates for easy identification Pressure compensation enables the use of longer laterals with smaller diameter tubing. Specifications Flow rates and color codes: 1 GPH (4 L/H) color code – black 2 GPH (8 L/H) color code – green 4 GPH (12 L/H) color code – red Operating pressure: 10-45 PSI (.7-3.5 BAR) Inlet size: 1/4" (4 mm) barb Outlet size: .2" (5 mm) male nipple Materials: Body and cover: High impact ABS Diaphragm: silicone Filter requirement: minimum of 150 mesh Dimensions .95" W x 1" H (24 mm W x 25 mm H)

• PC Drip Emitters Features The labyrinth water passage with floating silicon diaphragm design provides a self-cleaning mechanism at the water outlet Barbed inlet for installation into drip tubing or 1/4" distribution tubing Male nipple outlet for a placement of multi outlet adapter or bug caps Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions Available in three color-coded flow rates for easy identification Pressure compensation enables the use of longer laterals with smaller diameter tubing. Specifications Flow rates and color codes: 1 GPH (4 L/H) color code – black 2 GPH (8 L/H) color code – green 4 GPH (12 L/H) color code – red Operating pressure: 10-45 PSI (.7-3.5 BAR) Inlet size: 1/4" (4 mm) barb Outlet size: .2" (5 mm) male nipple Materials: Body and cover: High impact ABS Diaphragm: silicone Filter requirement: minimum of 150 mesh Dimensions .95" W x 1" H (24 mm W x 25 mm H)
• Pressure Compensating 1GPH Flow Rate - This line of PC drippers provides uniform flow distribution, even in areas with difficult topographical conditions
• Unique pressure differential mechanism provides clog resistant design and high emission uniformity.
• Widest Compensating Range Largest flow path in the industry - less susceptible to plugging, Maintains uniform flow rate from 7 to 45 PSI (maximum normal system operating pressure).
• Operating pressure: 10-45 PSI Recommended operating pressure: 25 PSI (use with model D46 25-PSI pressure regulator)
• Inlet 1/4" Inch Barb - Filter requirement: minimum of 150 mesh
